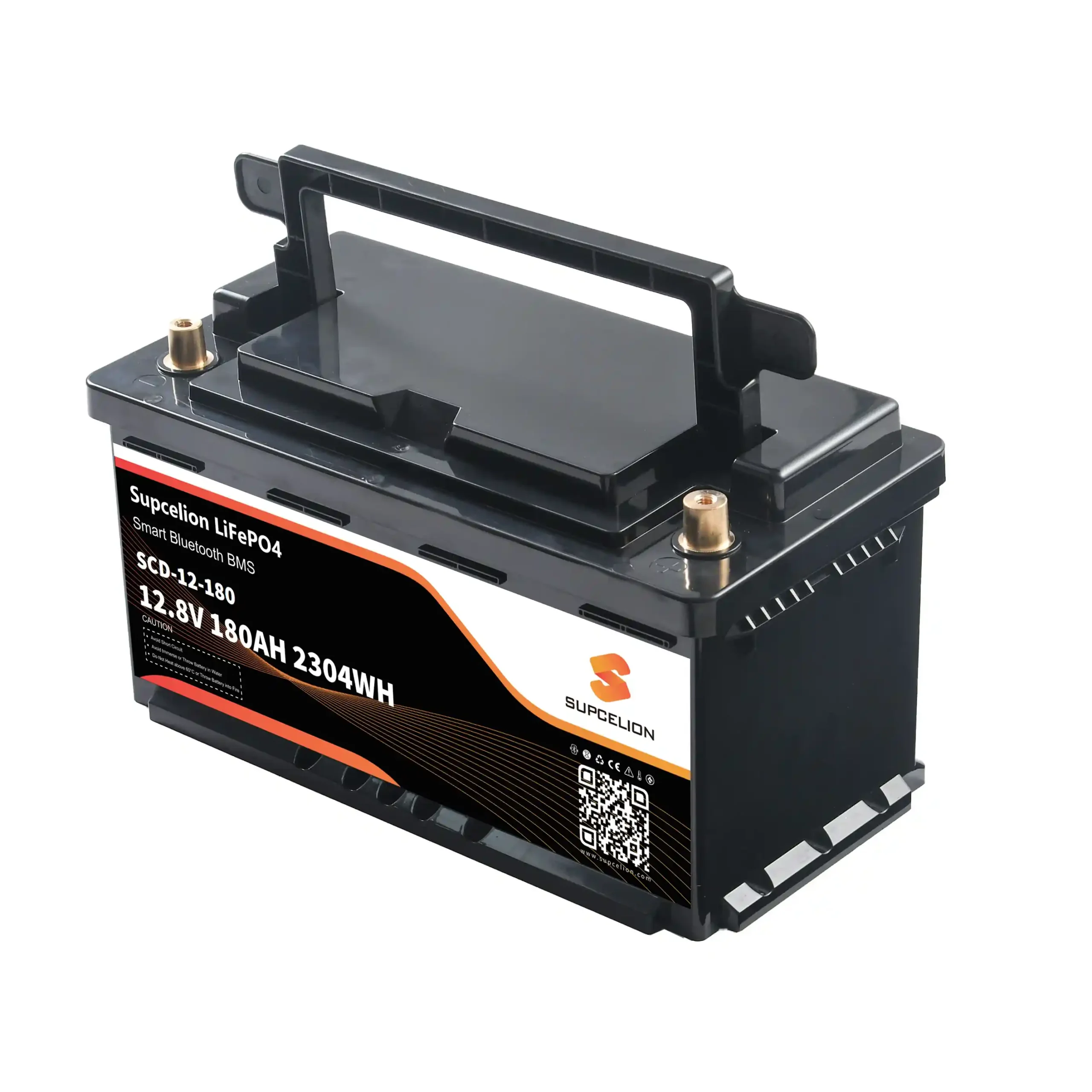

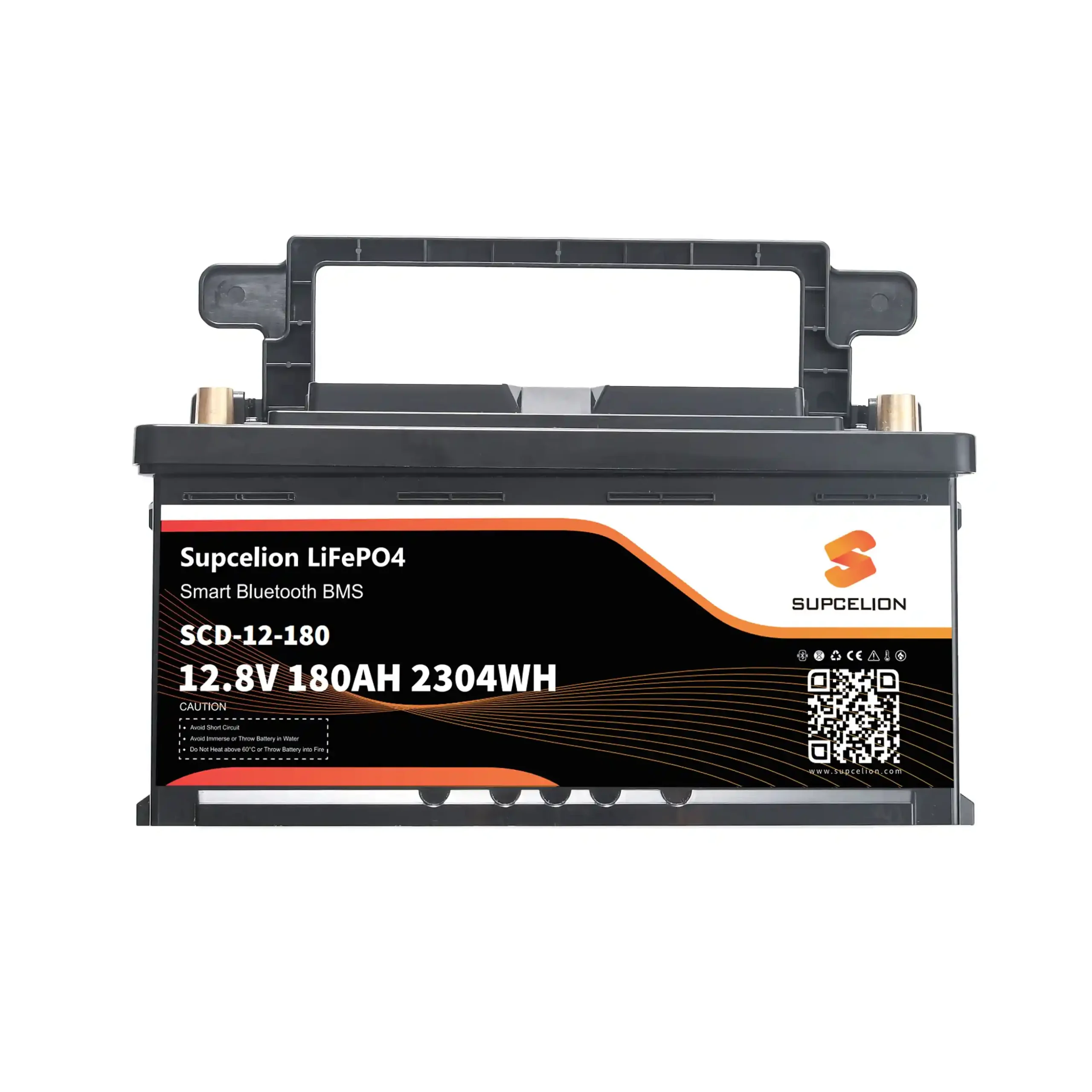

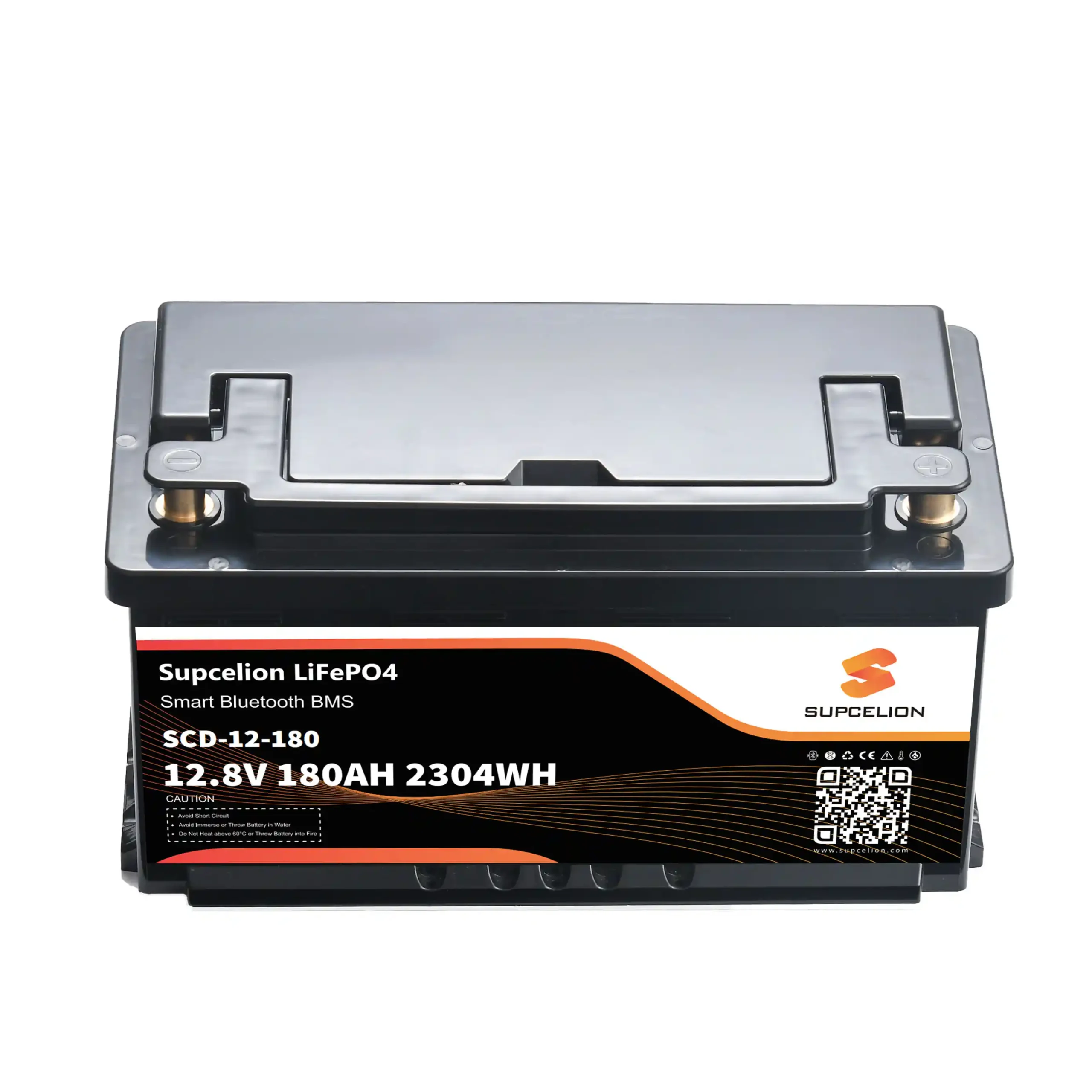

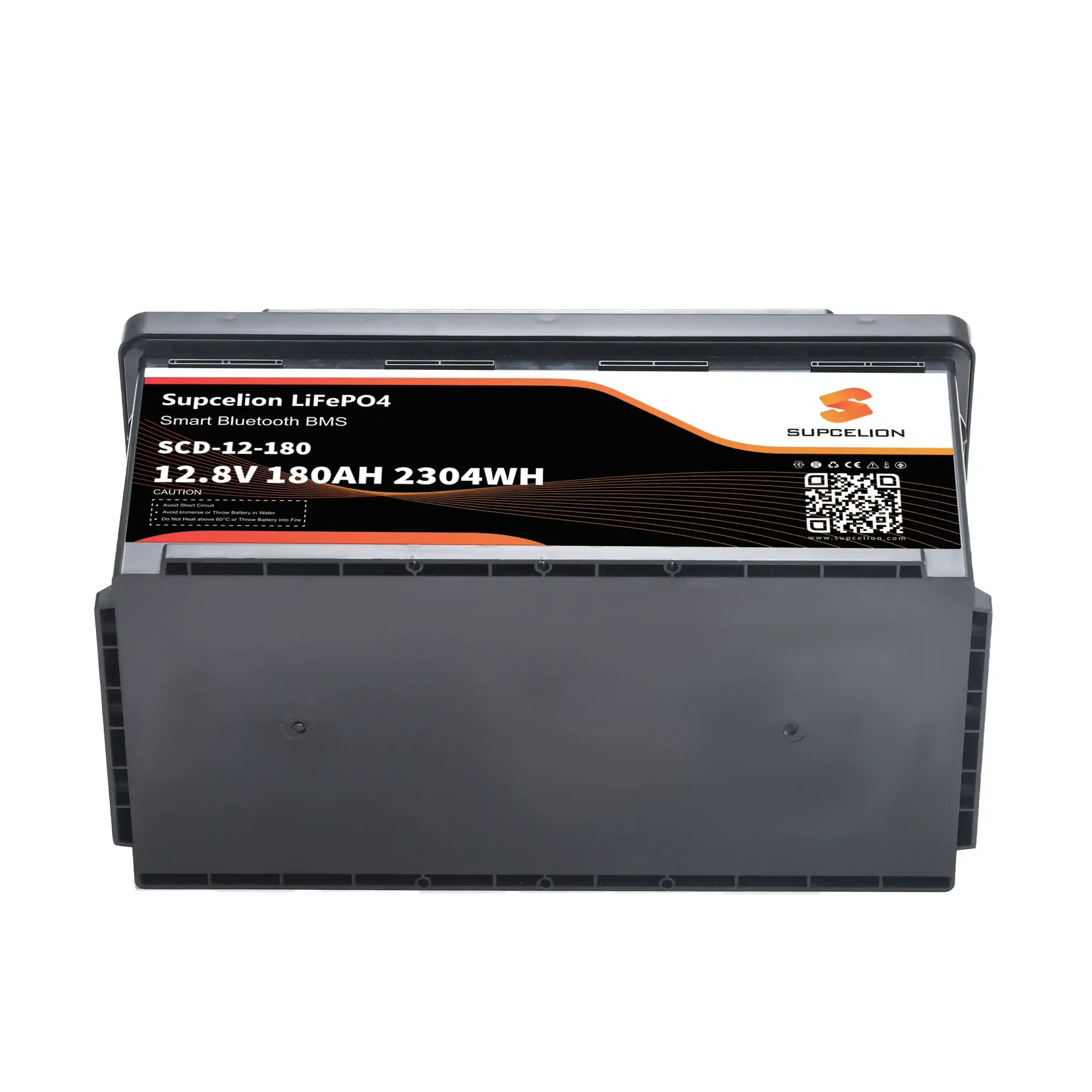

Supcelion SCD-12V-180AH LiFePO4 Smart Bluetooth Battery — Reliable Power!

Efficient and Safe Energy with the 180Ah 12V LiFePO4 Battery

The Supcelion SCD-12V-180AH battery is a modern energy storage solution designed for maximum efficiency and ease of use. Based on top-quality Class A prismatic LiFePO4 cells, it guarantees trouble-free operation, deep discharge cycles, and no memory effect. The battery offers high stability even under extreme loads and allows for a maximum continuous discharge current of up to 200 A. The Supcelion SCD-12-180 battery offers a rated voltage of 12.8 V and a high capacity of 180 Ah, providing exactly 2,304 Wh of energy. Thanks to the use of the safest LiFePO4 technology (with no risk of fire or explosion), it is designed for applications requiring a stable power supply. This model was specifically designed for under-seat installation (Under Seat Case), making it an ideal choice for motorhomes and camper vans such as the Fiat Ducato, Citroën, or Phoenix. Battery safety is ensured by a built-in, integrated BMS system that constantly monitors cell parameters. It protects the battery pack against overcharging and dangerous overvoltages. Additionally, this model features an integrated Bluetooth 4.0 module, which, when paired with a dedicated smartphone or tablet app, allows for wireless, real-time monitoring of the battery’s status.

Detailed technical specifications for the Supcelion SCD-12V-180AH battery:

• Model and Technology: SCD-12V-180AH (SCD-12-180) / Lithium Iron Phosphate (LiFePO4) – Class A prismatic cells
• Rated voltage: 12,8 V
• Rated capacity: 180 Ah
• Rated power: 2,304 Wh
• Maximum continuous discharge current: 200 A
• Wireless communication: Integrated Bluetooth 4.0 module (real-time mobile app)
• System expansion: Support for parallel connection of up to 4 batteries
• BMS System: Built-in integrated battery management system
• Application of the housing: Designed for installation under the seat (Under-seat case)

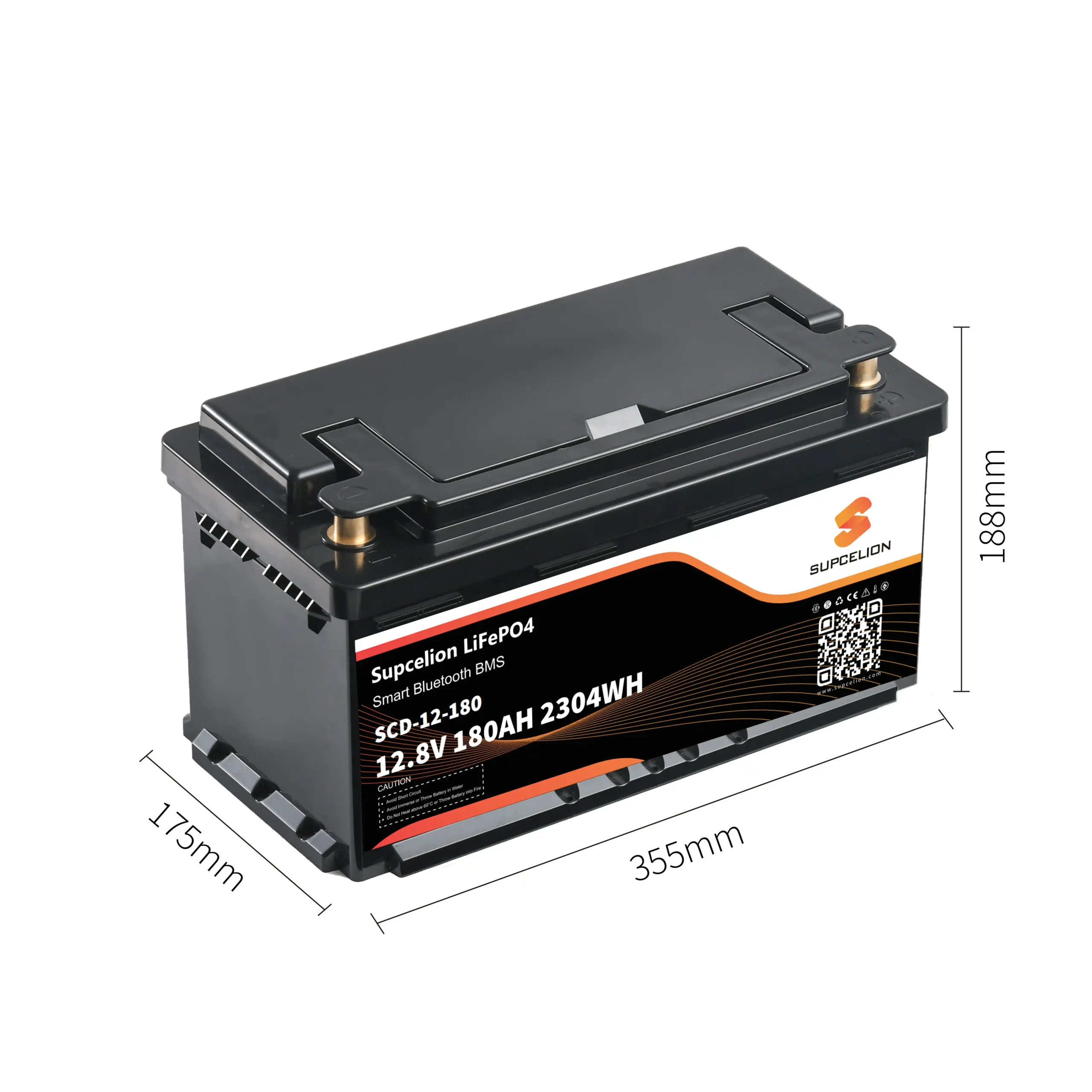

• Dimensions (L x W x H): 355 mm x 175 mm x 188 mm
• Weight: 14.9 kg
• Manufacturer's Warranty: 5 years

12.8V 180Ah LiFePO4 Battery for a Wide Range of Applications

The Supcelion SCD-12V-180AH is an innovative LiFePO4 battery designed for systems requiring efficient 12-volt energy storage. With a capacity of 180 Ah and a voltage of 12.8 V, it provides as much as 2,304 Wh of stored energy. Thanks to its „under-seat case” design and lightweight construction, this battery is ideal for RVs, vans, and other mobile applications where space is at a premium.

SCD-12V-180AH – Stable Power Supply and Long Service Life

The use of highly safe LiFePO4 technology and high-quality prismatic cells ensures maximum operational stability even under extreme loads. The manufacturer guarantees a long service life, high discharge and charge efficiency, and the entire unit is covered by a 5-year warranty. The built-in intelligent BMS supports the battery during daily operation, and a powerful continuous discharge current of 200 A ensures compatibility with the most demanding loads.

Safe battery with Smart Bluetooth BMS system

The Supcelion battery is equipped with an integrated Battery Management System (BMS) that monitors the condition of the device and, among other things, protects the cells against overloads and overvoltage, completely eliminating the risk of fire or explosion. The device offers complete ease of use thanks to its Bluetooth 4.0 module—a dedicated app displays all key data in real time. It is a comprehensive solution designed for modern power supply systems.
