LiFePO4 LiT 24V 100Ah Battery with 100A BMS — Reliable Power!

Efficient and Safe Energy with LiFePO4 Technology

The 24V 100Ah LiT battery is a modern energy storage solution designed for high efficiency. Based on an 8S1P architecture that utilizes LiFePO4 cells (100A/3.2V) cells and safe copper-aluminum composite busbars, it guarantees trouble-free operation even under heavy loads. The device features advanced current protection mechanisms, including instantaneous discharge current protection of 300±40A that responds in a fraction of a second (delay time of 50–200 ms).

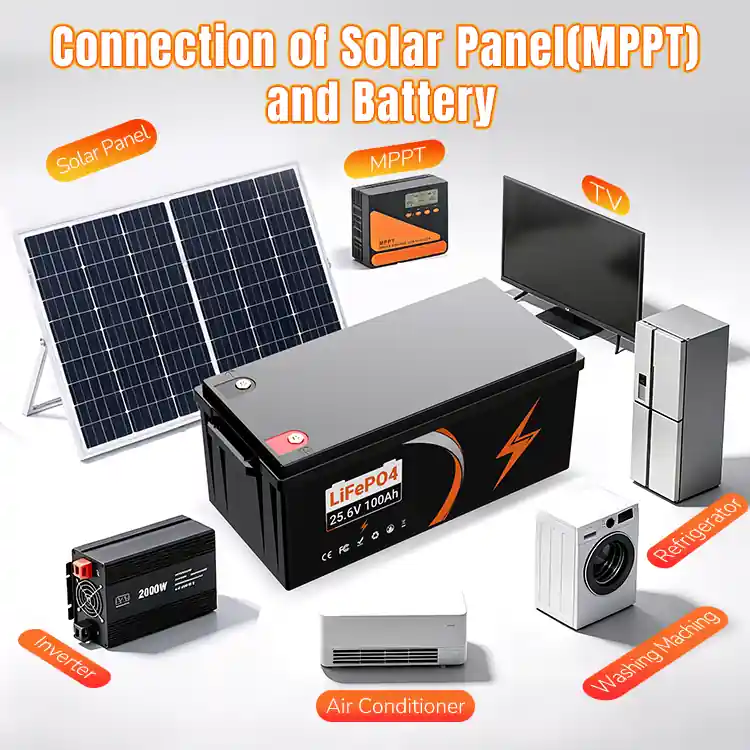

The 24V 100Ah LiFePO4 battery has a rated voltage of 25.6 V and a typical capacity of 100 Ah, providing approximately 2,560 Wh of energy. Thanks to LiFePO4 technology, it is designed for applications requiring a stable and efficient power source. It can be used as an energy storage solution in photovoltaic installations, emergency power systems, recreational vehicles, boats, and other systems operating at 24 V.

The integrated 8S100A BMS system ensures battery safety by monitoring and protecting the battery pack during both charging and discharging. The BMS provides protection against overcharging, over-discharging, overcurrent, and short circuits. The short-circuit protection features an automatic reset function that restores operation once the cause of the short circuit has been resolved.

Detailed technical specifications for the 24V 100Ah LiT battery:

• Model and Technology: LiT 24V 100Ah / Lithium Iron Phosphate (LiFePO4)
• Rated voltage: 25.6 V
• Rated capacity: Typically 100 Ah
• Rated power: about 2,560 Wh
• Cell configuration: 8S1P
• Voltage of a single cell: 3.2 V
• Cut-off voltage (end of charging): 29.2 V
• Maximum charging current: 100 A
• Charging mode: CC/CV
• Charging time: about 10 hours when using a 10-amp charger
• Maximum continuous discharge current: 100 A
• Deep Discharge Protection (Pack): 20 V
• Overcurrent protection during discharge: 300 ± 40 A
• Overcurrent protection response time: 50–200 ms
• Short-circuit protection: Yes, with an automatic recovery feature
• Life Cycles: > 4,000 cycles while maintaining over 80% efficiency
• BMS System: 8S100A, combined charging and discharging port
• Output terminals: 7 AWG wire
• Busbar: Copper-aluminum composite

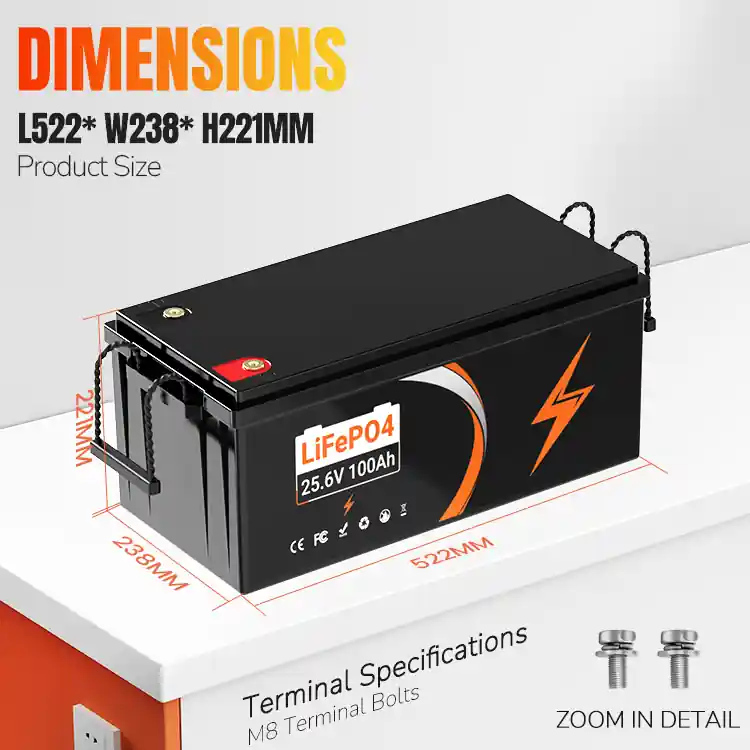

• Maximum dimensions (L x W x H): 522 mm x 238 mm x 218 mm
• Weight: about 28 kg
• Operating temperature range – charging: 0°C to 45°C
• Operating temperature range – discharge: from -10°C to 60°C
• Storage temperature for up to 1 month: from -20°C to 45°C
• Storage temperature for up to 3 months: from -20°C to 45°C
• Storage temperature for up to 1 year: from -20°C to 20°C

24V 100Ah LiFePO4 Battery for a Wide Range of Applications

The LiT 24V 100Ah is a versatile LiFePO4 battery designed for systems requiring efficient energy storage at 24 V. With a capacity of 100 Ah and a voltage of 25.6 V, it provides approximately 2,560 Wh of stored energy, making it suitable for use in emergency power systems, photovoltaic installations, RVs, boats, and other electrical devices.

LiT 24V 100Ah – Stable Power Supply and Long Service Life

The use of LiFePO4 technology and an 8S1P configuration ensures stable operating parameters. The manufacturer claims a service life exceeding 4,000 cycles while maintaining over 80% efficiency. The built-in 8S100A BMS provides additional protection for the battery during daily use, and the maximum continuous discharge current of 100 A allows it to power demanding loads.

Safe LiFePO4 battery with a BMS system

The LiT battery is equipped with a Battery Management System (BMS) that includes protection against overcharging, over-discharging, overcurrent, and short circuits. The design also features an automatic reset function for the short-circuit protection. As a result, the LiT 24V 100Ah is a solution designed for use in systems where safety, stability, and adequate protection of the battery pack are essential.
